Eclisse Double Fire Rated Pocket Door System

The current field of application report can be found on Eclisse's website and accompanies our FD30 systems.

Compatible door information can be found on Eclisse's website here

Elevate safety and style with the Eclisse Double Fire Rated Pocket Door System. Designed for fire-rated applications, this innovative system combines functionality with aesthetic appeal. Crafted with high-quality materials, it offers a space-saving solution while meeting stringent fire safety standards. Explore the versatility and peace of mind provided by the Eclisse Double Fire Rated Pocket Door System for your residential or commercial projects.



• Eclisse Double Fire Rated Sliding Pocket Door System - from intimate to open plan in one easy movement
• Double door sliding pocket door system available in a range of standard Imperial FD30 fire door sizes.

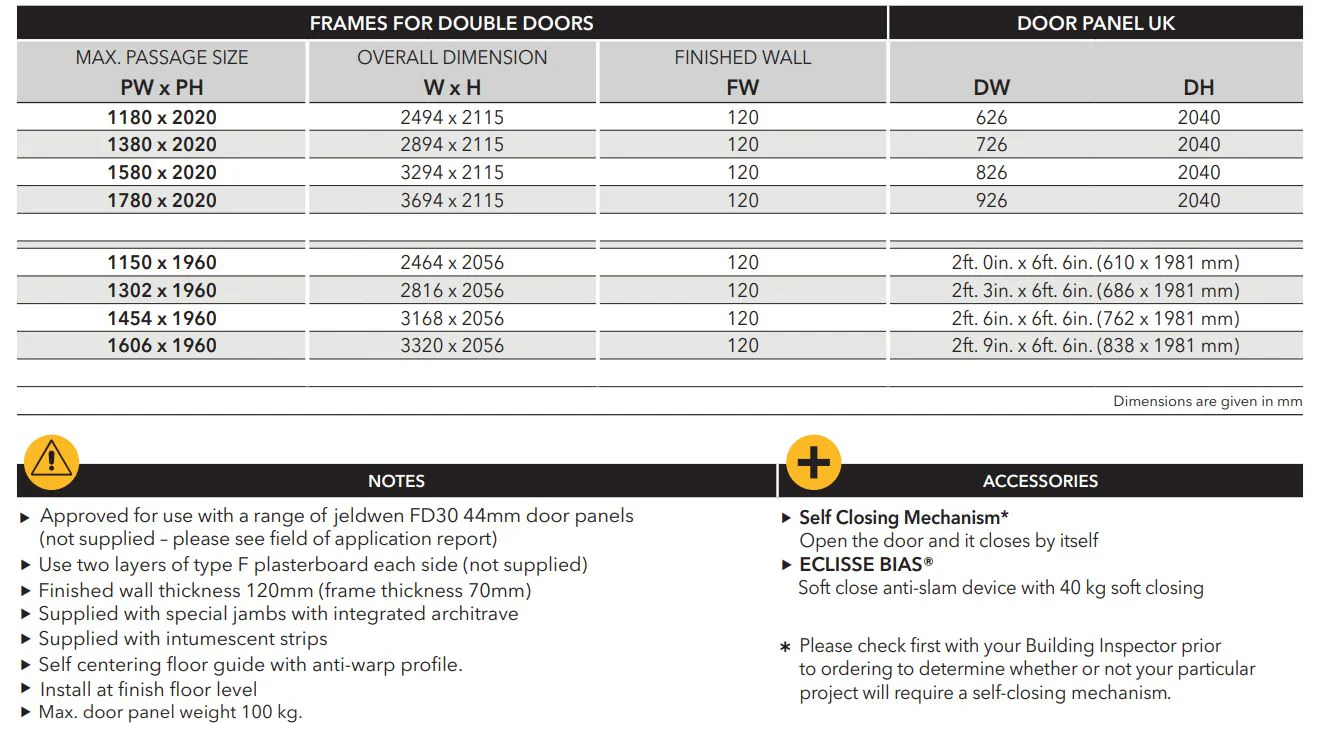

• Please see the overall system size and 'passage' sizes in the chart found in the product images above.
• Double Pocket FD30 systems to fit bespoke size door pairs also available - please contact us for more information on bespoke sizing.

• Pocket system only. Please see above link to compatible fire doors - only doors approved by Eclisse's fire report can be certified in this system.

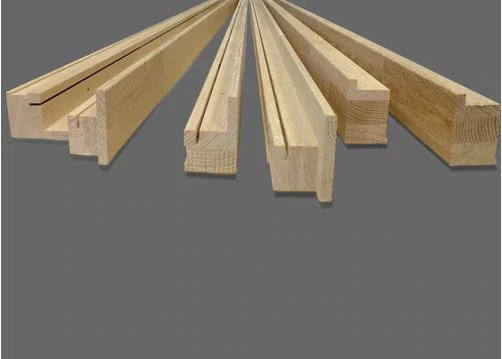

• Fire-rated jamb kit is supplied with incorporated architraves.
• Eclisse's pocket door systems have a removable track that does not require breaking into the wall
• To achieve a 30-minute fire rating the double FD30 system has to be used with a self-close accessory, one per door.
• Download further specs HERE.
• If setting out your stud work before delivery of your frame please note there is approximately an 8mm tolerance built into the height of these pocket door systems which you will need to take into account. Packers may be required to
  accommodate for this gap if you are unable to adjust the stud work above the system.
• The frame should be installed at finished floor level.
• Pocket system only

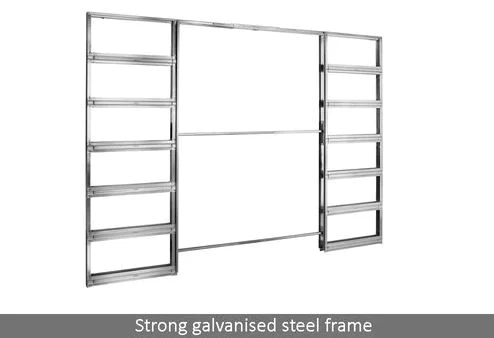

• Note: The frame is 70mm and requires two layers of 12.5mm fireboard on either side to give a finished wall thickness of 120mm.

* Free Delivery on all Eclisse Pocket Systems

* Supplied with White intumescent strips by default. Brown strips are available and ordered only if specified in order notes
